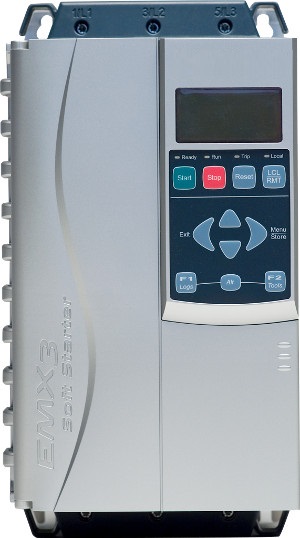

EMX3 : Soft Starter
Range: 23A to 1600A
Features:
- Built-in Bypass Contactor till 1000A , XLR-8 Adaptive acceleration & deceleration control for pumps
- Conformal Coated PCB , Detachable keypad
- Electronic motor overload protection , 99 event logs with time stamping, Last 8 trip logs
- Operating Temp 50 C
- 5DI, 4DO, 1AO

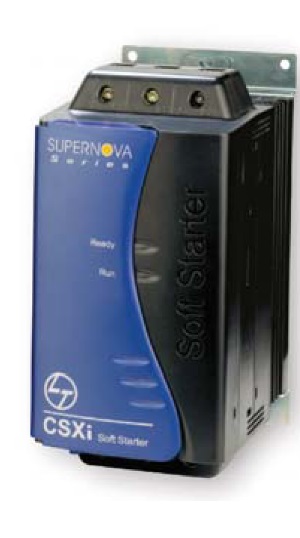

CSXi : Soft Starter
Range: 7.5 to 110kW
Features:
- Built-in Bypass Contactor , Soft start / Soft stop / Adjustable current limit
- Motor Protections , Overload
- Single phasing, Instantaneous overcurrent
- Phase sequence reversal ,Abnormality in supply
- Unbalanced current, Thermistor protection through PTC
- Communication options available
Lx2000 : Lift Series
Range: 3.7 to 22kW(IP20) & 0.75 to 30kW (IP66)
Features:
- Ideal for High Speed Elevator Control,Suitable for geared / gearless machines
- Compatibility with various types of encoders,Anti-roll-back algorithm
- Load and direction based floor-levelling,Built-in ARD function
- Conformal Coating Class 3C2,Built-in RS485 Modbus Communication Protocol
- 11DI, 4DO, 3AI, 2AO Lift & Elevator
LN Touch : HMI
Range: 4.3” to 15” screen in 7 models
Features:
- Multi-language, Graphics, Extended alarms, Recipe,
- Data logging, Printing, Password Protection,
- Trends serial, Ethernet, Fieldbus communication

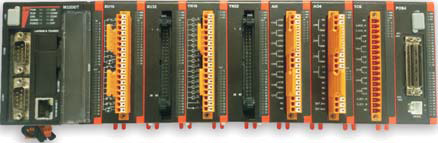

LX8 : PLC
Range: 14 - 2560 IOs
Features:
- Feel Powerful Communication,Built-in 100 Mbps Ethernet port
- Built-in USB Port & 2 channels high speed serial port,Built-in 4 HSC channels & 6 PTOs Large Memory
- 987K byte Program memory,128K byte Data memory
- Supports 4GB SD Card memory,Best solution for network based applications

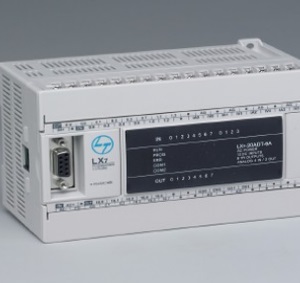

LX7 / LX7S : PLC
Range:
Features:
- Basic control to 28, 48 points & upto 104 I/O points
- Enable 2 expansion unit
- 2 serial ports (2 RS232C/RS485 with Modbus RTU)
- Built-in HSC, Pulse catch, Pulse output (for TR output unit), RTC
